Specifications

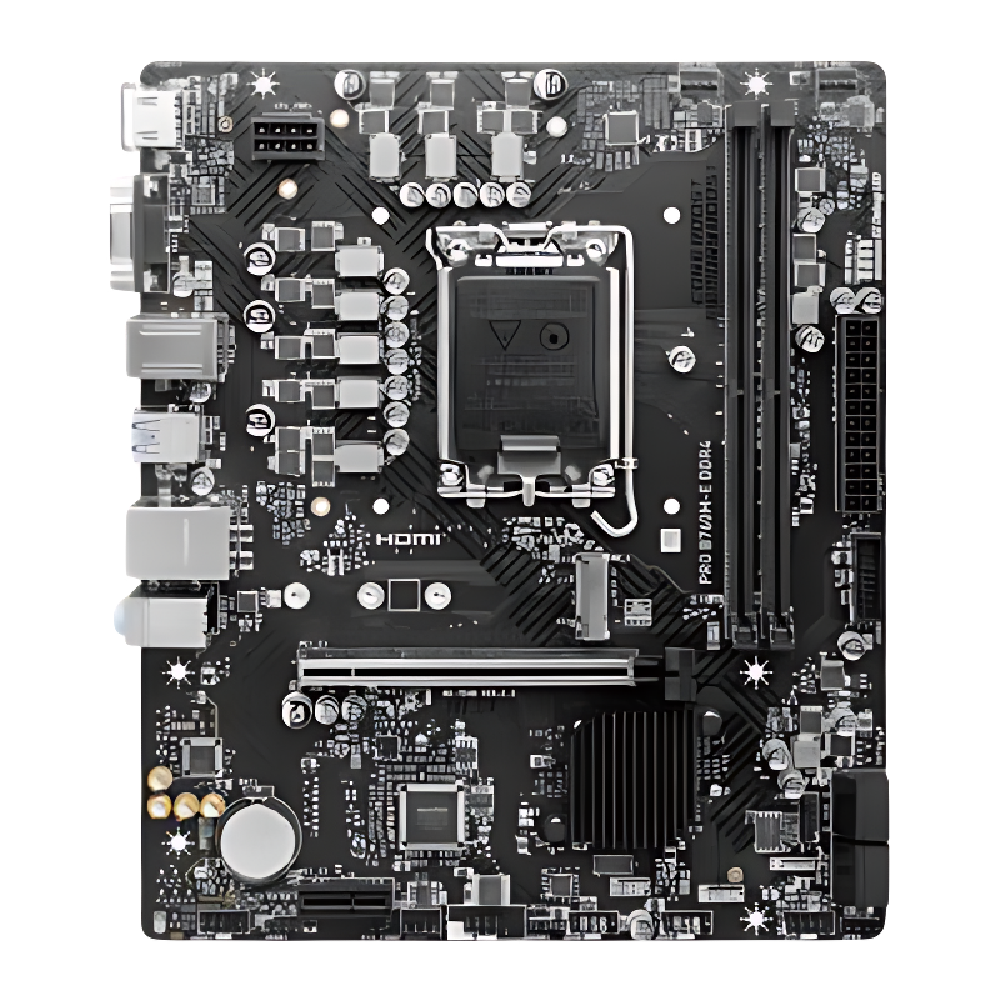

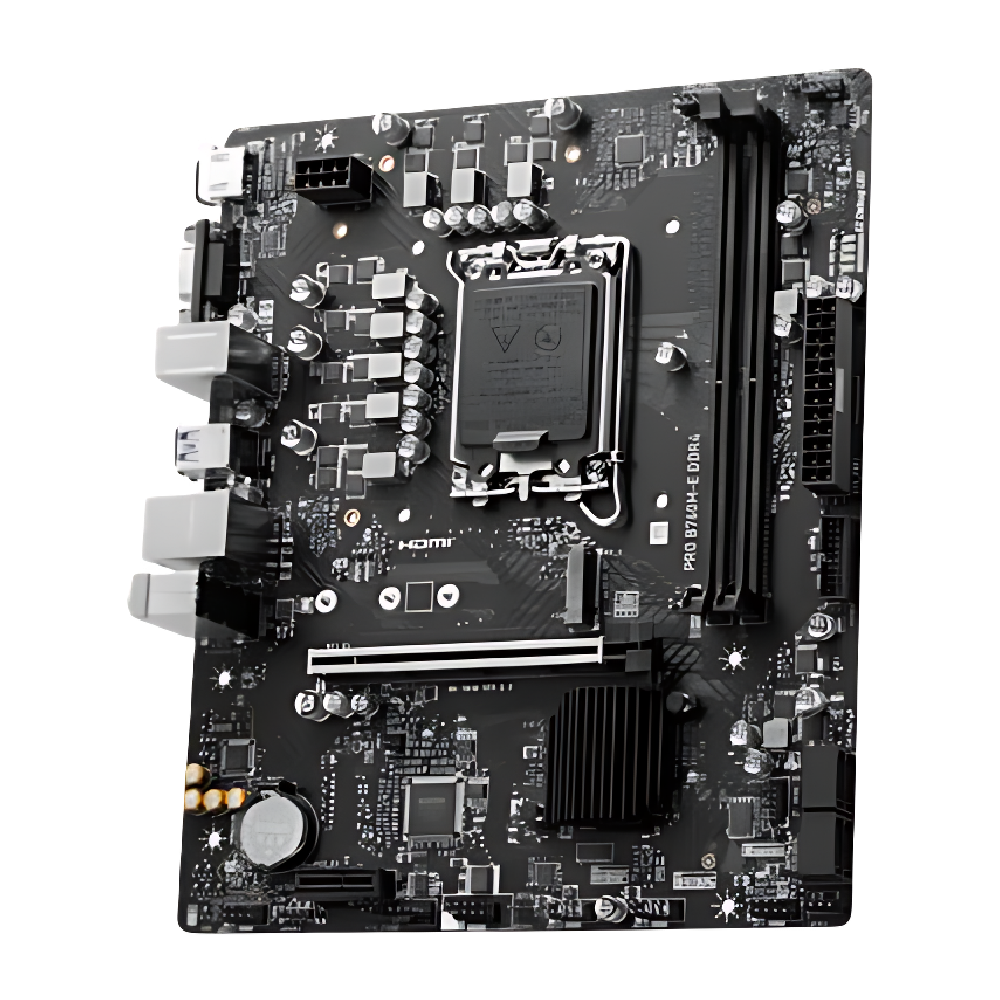

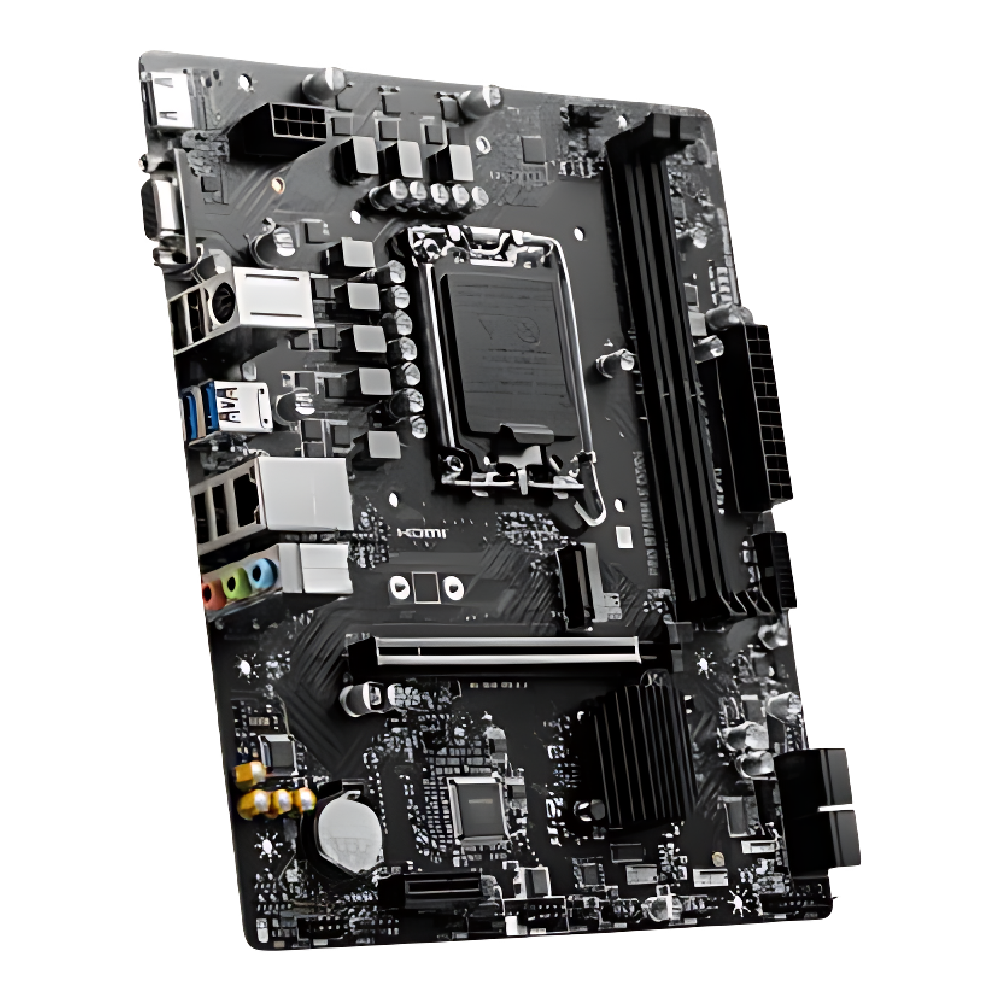

View the full specifications of the Msi PRO B760M-E DDR4 Intel LGA 1700 mATX Motherboard, including its Core Boost technology, support for the latest storage standards, and premium layout design.

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

STORAGE

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

AUDIO

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

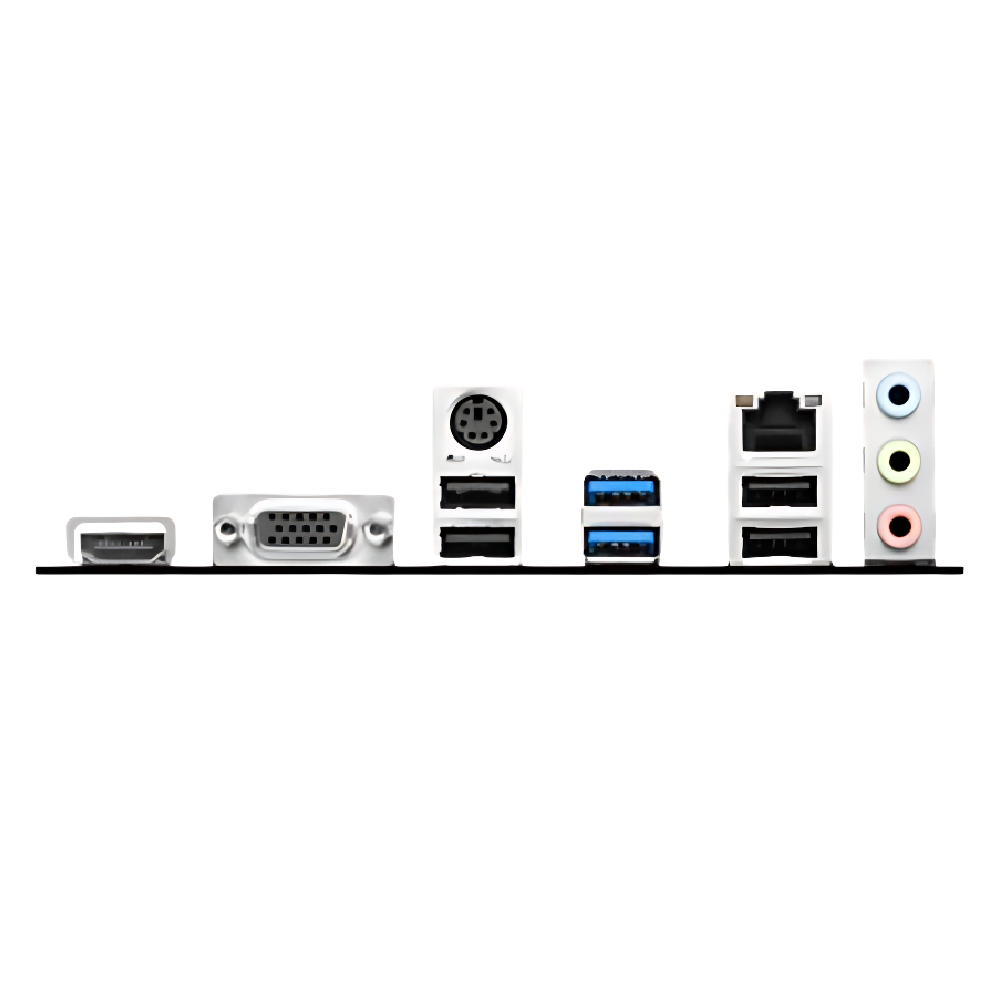

BACK PANEL PORTS

1HDMI™
2VGA
3Keyboard / Mouse
4USB 3.2 Gen 1 5Gbps (Type-A)
5LAN port
6Audio Connectors
7USB 2.0
8USB 2.0

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION

mATX
200mmx236.16mm

FAQ (Frequently Asked Questions)

What processors are compatible with the Msi PRO B760M-E DDR4 Intel LGA 1700 mATX Motherboard?

The motherboard is compatible with Intel LGA 1700 processors.

What storage standards does the motherboard support?

The motherboard supports all the latest storage standards, including M.2 NVMe SSD and SATA III.

Can I control additional RGB peripherals with the Mystic Light Extension pin header?

Yes, the Mystic Light Extension pin header allows for intuitive control of additional RGB strips and other RGB peripherals without needing a separate RGB controller.

How much is the best price of the Msi PRO B760M-E DDR4 Intel LGA 1700 in Saudi?

534.48 SAR /- Total Amount. (Tabby EMI Plan Available)

Gaming PC (32)

Gaming Components (170)

Gaming Laptops (31)

Video Cards (81)

Gaming Consoles

Drones (52)

Scooters (4)

gaming accessories

Msi PRO B760M-E DDR4 in Saudi

The MSI PRO B760M-E DDR4 Intel LGA 1700 mATX Motherboard in Saudi comes equipped with Core Boost technology, enhancing power design to ensure swift and clean current delivery to the CPU, thereby setting the ideal stage for CPU overclocking.

534.48 SAR

Msi PRO B760M-E DDR4 Gallery

Specifications

Similar Products

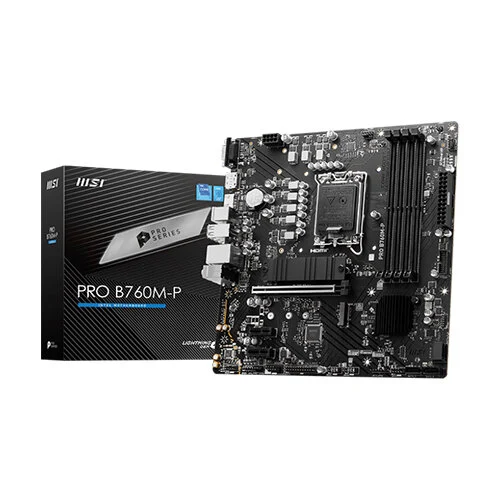

MSI PRO B760M-P DDR5 M-ATX LGA 1700 Motherboard

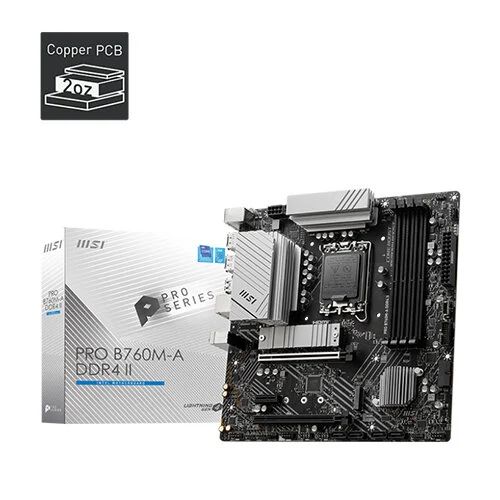

MSI Pro B760M-A DDR4 II MATX Intel LGA 1700 Motherboard

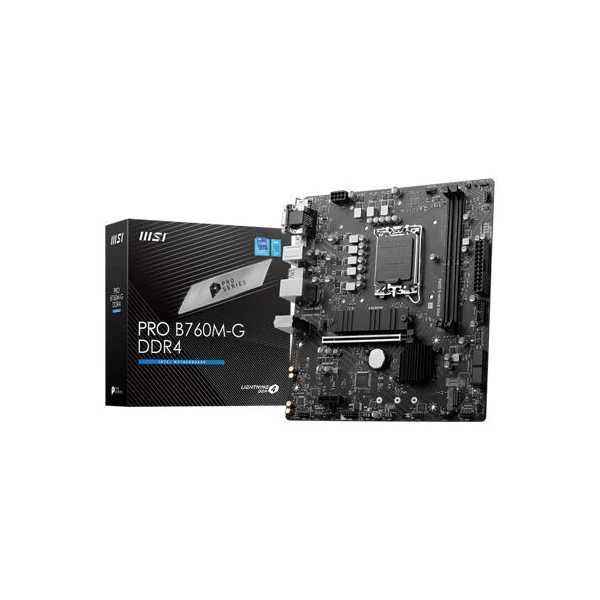

Msi PRO B760M-G DDR4 LGA 1700 M-ATX Motherboard
